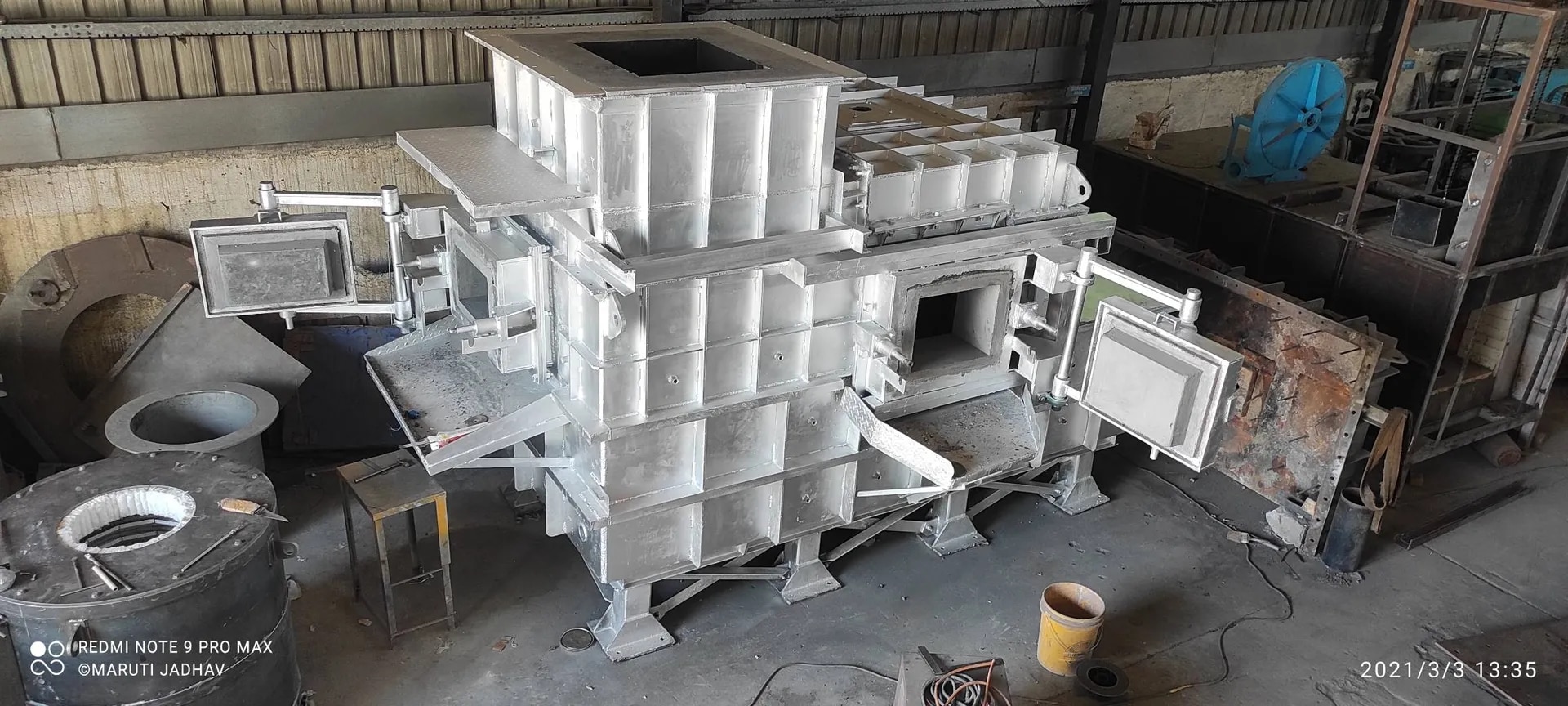

Tower Aluminum Melting furnace

The furnace is designed in order to melt bulky returns from die

casting, ingots of Al‐alloy and general aluminum scrap.

This is achieved by loading die casting returns from the tower door

with the skip automatic loader or hydraulic loader and melting the

aluminum in the dry chamber, on a little inclined surface made of

castable refractory. The liquid aluminum can therefore flow into the

main basin, placed at the back of the furnace.

1. Maximum height of smelted bath : ≈ 750mm.

2. Spillage of melted aluminum: By tilting the furnace on the axis of the

spout with oil dynamic system and cylinders.

3. Heating of the furnace: By combustion plants driven by Diesel Oil / LPG

/ Methane, depending on customer needs, made up of automatic burners

and all the safety protections. Dry Melting chamber and Holding Chamber

are thermally independent and burning systems work under different

control purposes

4. Thermal power installed : 10,00,000 ‐ 30,00,000 Kcal/h depending on

furnace dimensions & Capacity

5. Consumption : < 600 Kcal/Kg of loaded aluminum at 720° C.

6. High Melting Rate : 0.5 – 3.0 MT / hr. depending on furnace

dimensions and on type of load .

7. Low Maintenance

8. Fast Melting

Available from 500 Kgs to 3000 Kgs Capacity

Fuel : Gas/Oil
